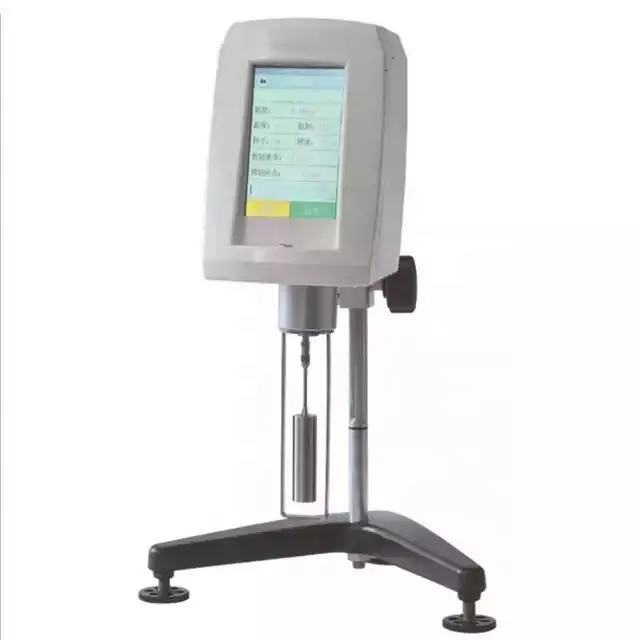

Digital Laboratory Viscosity Meter

Digital Laboratory Viscosity Meter SNB-T. Lead Time: 2-4 Weeks. Rotary Viscometer SNB-T, Digital Brookfield Equivalent Viscometer. Widely used in the need to measure the viscosity of fluid and fluid under high temperature and melting. Includes the following industries: paint, coatings, cosmetics, printing ink, paper pulp, food, oil, latex, starch, solvent-based adhesives, biochemical products, etc.
Lead Time: 2-4 Weeks
• Model: SNB-1T, SNB-2T
• Control/display mode: 5 inches color touch screen
• speed(r/min): 0.3/0.6/1.5/3/6/12/30/60 | 0.1/0.3/0.6/1.5/3/6/12/30/60
• Measuring range mPa.s: 1~2,000,000 | 1~6,000,000 (Measuring 10 under low viscosity, equipped with 0 # rotor)
• rotor: 1, 2, 3, 4#( standard) 0#转子( standard)
• Measurement error (Newtonian liquid): ±1%
• Repetitive error (Newtonian liquid): ±0.5%
• Timing function: standard
• Temperature measurement function: The standard temperature sensor interface temperature sensor (selected)
• Automatic scanning function: Automatic scanning and recommend the best combination of rotor and speed
• According to maximum measuring range: Combination of rotor and speed automatically according to the selected viscosity range can be measured
• Should show shear/shear rate: standard
• Automatic display kinematic viscosity: Need to input the density of the sample
• Self-built measurement program: Can save up to 30 groups (including the rotor, rotational speed, temperature, time, etc.)
• Save the measurement results: Can save up to 30 sets of data (including viscosity, temperature, rotating speed of rotor, and the shear rate, Shear stress, time, density, kinematic viscosity, etc.)
• Viscosity curve: Real-time display viscosity curve print
• print: Data, curve can print (standard equipped with print interface, to choose and buy a printer)
• Data output interface: standard
• Constant temperature parts: Option (viscometer constant temperature trough, thermostatic cup, etc.)
• Working power supply: Wide working voltage (110 v / 60 hz or 220 v / 50 hz)
• Overall dimensions: 300 × 300 × 450(mm)
Detailed technical parameters provided in the specifications section.
• SNB-1T
• SNB-2T
• 5 inches color touch screen
• Wide measuring range
• Automatic scanning function
• Real-time display viscosity curve
• Can save up to 30 sets of data
